Product Description
Product Introduction

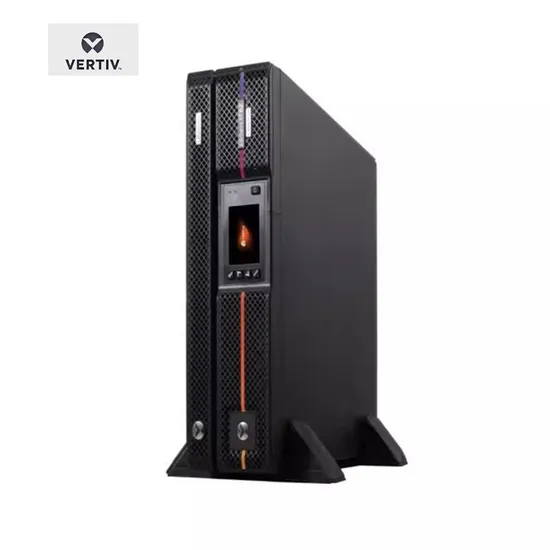

Vertiv™ ITG1-3KVA UPS | ||||||
Model number | GR01KS/GR01KL | GR02KS/GR02KL | GR03KS/GR03KL | |||
Ratings(VA/W) | 1000VA / 900W | 2000VA / 1800W | 3000VA / 2700W | |||
Input | ||||||
Voltage Range | 110 -300Vac | |||||
Frequency Range | 40Hz~70 Hz | |||||
I/O mode | Single in single out | |||||
Power factor | >=0.99 | |||||
Output | ||||||
Output voltage | 220/230/240VAC | |||||
Output voltage accuracy | ±1% | |||||
Overload | 105~110%, 10 minutes | |||||
110~130%, 1 minutes | ||||||
>130%, 3 seconds | ||||||
Current peak factor | 3:01 | |||||
Voltage harmonic distortion | 3%THD (linear-load);6%THD (nonlinear-load) | |||||
Switching time | Mains to battery | 0ms | ||||
Inverter to bypass | 4ms (Under standard conditions) | |||||
Waveform | Sine wave | |||||
Efficiency | ||||||
Mains mode | 88% | 89% | 90% | |||
Battery | ||||||
Standard | Battery quantity | 2 | 4 | 6 | ||
Recharging current | 1A | |||||
Long term | Battery quantity | 3 | 6 | 6 | ||
Recharging current | 6A Max | |||||
Appearance | ||||||
Installation methods | Tower/rack | |||||
Standard | Size (W×H×D, mm) | 438*86*310 | 438*86*410 | 438*86*630 | ||
Weight (kg) | 11 | 18 | 26.5 | |||
Long acting term | Size (W×H×D, mm) | 438*86*310 | 438*86*410 | 438*86*460 | ||
Weight (kg) | 5.5 | 8.3 | 9.4 | |||
Environmental Parameter | ||||||
Operating humidity | 20 -90% RH @ 0 - 40ºC (no condensation) | |||||
Noise | <50dBA @ 1 meter | |||||
Working altitude | 1000meter | |||||
Monitoring and management | ||||||
Intelligent RS-232 or USB (optional) | Supports Windows ® 2000/2003 / XP/Vista / 2008/7/8, Linux, Unix and MAC for stand-alone operation | |||||
Monitoring card | Supports dry contact card, MODBUS card, SNMP card and other options | |||||
Certification | TLC,CQC, CE | |||||

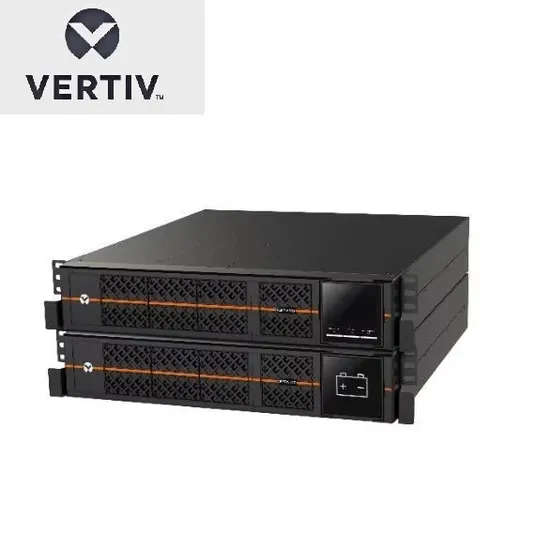

Vertiv™ ITG6-10KVA UPS | |||||
Model number | GR06KS/GR06KL | GR10KS/GR10KL | |||
Ratings(VA/W) | 6000VA / 6000W | 10000VA / 10000W | |||
Input | |||||
Voltage Range | 110 -300Vac | ||||
Frequency Range | 40Hz~70 Hz | ||||
I/O mode | Single in single out | ||||
Power factor | >=0.99 | ||||
Output | |||||
Output voltage | 220/230/240VAC | ||||
Output voltage accuracy | ±1% | ||||
Overload | 105~110%, 10 minutes | ||||
110~130%, 1 minutes | |||||
>130%, 3 seconds | |||||
Current peak factor | 3:01 | ||||
Voltage harmonic distortion | >=1%THD (linear-load) ;>=4%THD(nonlinear-load) | ||||
switching time | Mains to battery | 0 ms | |||
Inverter to bypass | 0 ms | ||||
Waveform | Sine wave | ||||
Efficiency | |||||
Mains mode | 93.50% | ||||
Battery | |||||
Standard | Battery quantity | 16 | |||
Recharging current | 1A | ||||
Long term | Battery quantity | 16-20 knots (Continuously adjustable) | |||
Recharging current | 4A Max | ||||
Appearance | |||||
Installation methods | Tower/rack | ||||
Standard | Size (W×H×D, mm) | Mainframe: 438*88*633(2U); Battery: 438*88*735(2U) | |||
Weight (kg) | Mainframe: 17;Battery:48 | Mainframe: 20;Battery:48 | |||
Long acting term | Size (W×H×D, mm) | 438*88*633(2U) | |||
Weight (kg) | 17 | 20 | |||
Environmental Parameter | |||||
Operating humidity | 20 -90% RH @ 0 - 40ºC (no condensation) | ||||
Noise | <50dBA @ 1 meter | ||||
Working altitude | 1000 meter | ||||
Monitoring and management | |||||
Intelligent RS-232 or USB (optional) | Supports Windows ® 2000/2003 / XP/Vista / 2008/7/8, Linux, Unix and MAC for stand-alone operation | ||||
Monitoring card | Supports dry contact card, MODBUS card, SNMP card and other options | ||||
Certification | TLC, CQC, CE | ||||
Main Product
Company Profile
Beijing Appleton Technology Development Co., Ltd is a research and development, sales.promotion in one of the high-tech companies, Since its inception, has been committedto providing global customers with high-quality UPS uninterruptible power source, por-table power supply, maintenance-free batteries, lithium batteries and other relatedUPS products and professional solutions, ls an important enterprise in China's energy in-dustry, in the UPS uninterruptible power source has a long time of accumulation and ex-perience, the company is Eaton APC Chind's senior agent, has the industry's top designteam, able to provide a variety of personalized custom needs.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Our Factory
Our Certifcate
Exhibition
Packaging & Shipping
FAQ
1.Which UPS brands does Epton distribute?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and Vertiv Etc. We also offer customized UPS solutions based on specific customer requirements.
2. In which scenarios is the UPS uninterruptible power supply applicable?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and KELONG. We also offer customized UPS solutions based on specific customer requirements.
3. How long does it take for the products to be shipped?
Under normal circumstances, in-stock products will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately based on specific situations.
4.What payment methods do you accept?
We accept bank transfer (T/T), Alipay, and credit cards (via secure payment gateway)etc. Available options are subject to the order page.
5.Do you provide technical support?
Yes, we offer free technical consultation and remote support. You can reach us via phone, email, or online customer service.
