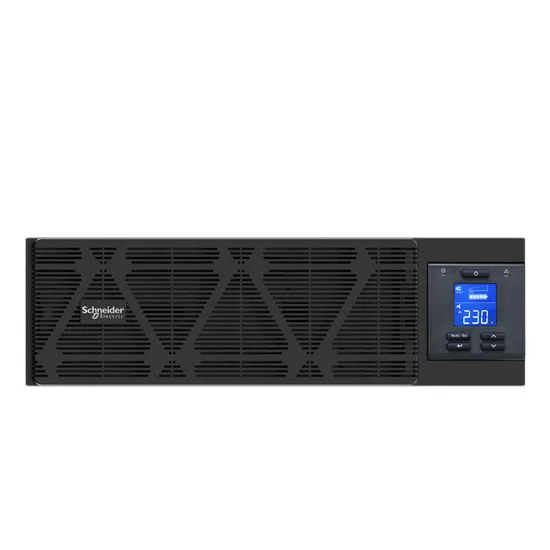

APC UPS Sp Series Spm10kl-33 10000va 10000W Online Rack/Tower Type Uninterruptible Power Supply 10kVA, Without Battery

model

SPM10KL-33

SPM10KL-33P

SPM15KL-33

SPM15KL-33P

SPM20KL-33

SPM20KL-33P

enter

Input format

Single-phase or three-phase

The main and the side are of different origins

Main road and bypass same source input

Rated input voltage

220V(LN)/380V(phase to phase)

Phase-locked range

46-54Hz

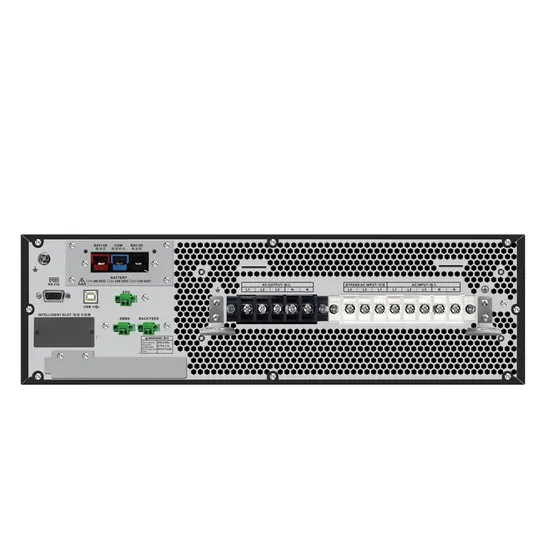

Input terminals

Terminal block

Input voltage range

100% load: 176V-300V(LN)/305V-520V(line voltage)80% load: 150V-300V (LN) / 260V-520V (line voltage)50% load: 110V-300V (LN) / 190V-520V (line voltage)

Input frequency

Rated mode: 50/60±4Hz Generator mode: 40-70 Hz

Input power factor

>0.99

Output

Output format

Single-phase or three-phase

Maximum output power (VAW)

10000VA/10000W

15000VA/15000W

20000VA/20000W

Output power factor

0.8~1 (Power factor is 0.8 when connected to 16 external batteries; 0.9 when connected to 18 external batteries; and 1 when connected to 20 external batteries)

efficiency

95% dual-conversion mode; 97% ECO mode

Output terminals

Terminal block

Output waveform

Pure sine wave

Rated output voltage

220 V/380V (rated), 230 V/400V (optional), 240 V/415V (optional)

Overload capacity

102% continuous; 103%~110% for 60 minutes; 11~125% for 10 minutes; 126~150% for 1 minute; >150% for 1 second, switch to bypass.

Maximum parallel capacity

3

3

-

3

External battery

Battery Type

Sealed lead-acid batteries

Battery voltage

±96-120V (16/18/20 batteries)

Battery charging current

1-13A (Adjustable)

External battery terminal

Anderson Terminals

Display and Interface

LED indicator light

Fault, load capacity, battery capacity, bypass, AC mode, battery mode, battery fault, overload

LCD display

EPO

support

Parallel interface

-

support

-

support

-

support

Communication interface

RS232 and USB

Smart Card Slot

It can install SNMP, Modbus, dry contacts, and environment interface cards.

Environmental parameters

Operating ambient temperature

No derating from 0 to 40°CLinear derating to 85% of maximum load capacity at 40 to 45°C.Linear derating to 75% of maximum load capacity at 45 to 50°C.

Storage temperature

-20 to 60°C

relative humidity

0–95% non-condensing

noise

<60dB

Altitude

0-1000 meters, no need to carry1000-3000m: Output capacity decreases by 1% for every 100 meters increase in altitude.

Protection level

IP20

physical parameters

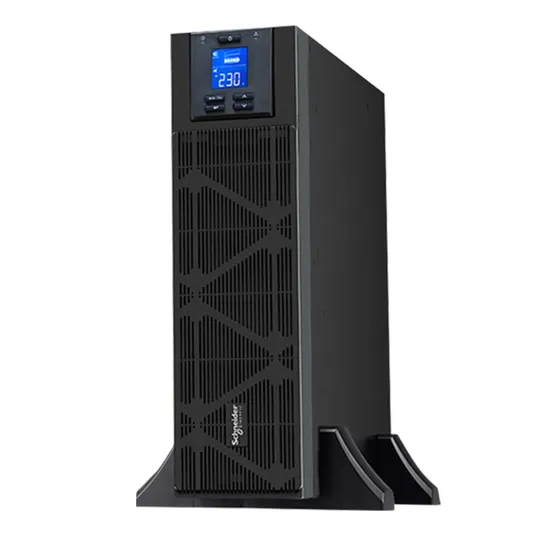

Installation method

Tower or rack mounting, convertible

Rack-mount height (U)

3U

Dimensions (height x width x depth) (mm)

131×438×690

Net weight (kg)

25

29

29

Certification and Standards

Certification

CE, TLC

Parallel Accessories

Models with the "P" designation include a parallel operation card and cable; models without the "P" designation do not have parallel operation functionality.
