Product Description
Product Introduction
Parameter | |||||||||

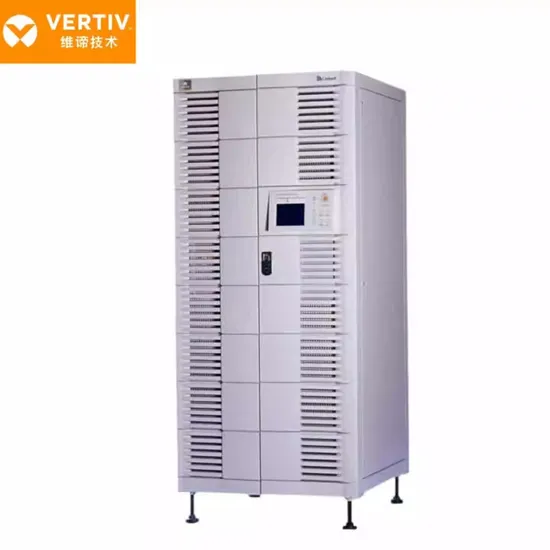

Model | UL33 | ||||||||
Power | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | ||||
Parameters | |||||||||
W×D×H(mm) | 600×860×1400 | 800×860×1800 | 900×850×1900 | ||||||
Weight(kg) | 440 | 528 | 654 | 811 | 790 | ||||
Input characteristics (rectifier) | |||||||||
Input voltage | 380VAC,Three-phase three-wire | ||||||||
Rated operating frequency | 50/60Hz | ||||||||
Input voltage range | 208V~437V, -20%~+15% full load, -25%~-45% linear derating, -45% can carry 50% load | ||||||||
Input frequency range | 50Hz±10% | ||||||||
Input power factor | Fully loaded>0.99 | ||||||||
Input power slow start function | 1-255s can be set, default is 10s | ||||||||
Rectifier output characteristics | |||||||||
Output voltage regulation accuracy | 0.5% | ||||||||
DC ripple low voltage | ≤1% | ||||||||
Output characteristics (inverter) | |||||||||
Inverter output voltage | 380, three-phase four-wire | ||||||||
Output power factor | 0.8 | ||||||||
Voltage stability | Steady state | <±1% typical value | |||||||
Transient | <±5% typical value | ||||||||
Steady state response time | <20ms | ||||||||
Inverter overload capability | 105%~125% 10 minutes, 125%~150% 1 minute, >150% 200 milliseconds | ||||||||
Phase shift characteristics | <0.5° | ||||||||
<0.5° | |||||||||
Total harmonic content | <1% (typical value) | ||||||||
THDv | <3% (typical value) | ||||||||
Bypass | |||||||||
Bypass input voltage | 380/400/415VAC, Three-phase four-wire | ||||||||
Bypass voltage range | Default -20% ~ +15%, -40%, -30%, -10% ~ +10%, +15% and other range values can be set through software | ||||||||
Bypass overload capability | ≤135% long-term operation, 1000%20ms | ||||||||
System | |||||||||
Frequency | 50Hz(can be set) | ||||||||
Synchronization tracking range | ±0.5Hz~3Hz adjustable every 0.5Hz | ||||||||
Measured frequency accuracy | 50Hz/60Hz±0.02% | ||||||||
System efficiency (full load) | Up to 93% | ||||||||
Working environment | |||||||||
Operating temperature range | 0~40ºC | ||||||||
Storage temperature | -25~70ºC(excluding battery) | ||||||||
Relative humidity | 0~95% no condensation | ||||||||
Maximum operating height | ≤Altitude 1500m,for every 100m above 1500m, the load will be reduced by 1% | ||||||||
Noise(1m) | 55dB | 70dB | |||||||
Protection level | IP20 | ||||||||
Standards | Safety regulations: IEC62040-1-1,electromagnetic compatibility: IEC62040-2, design and testing: IEC61000-4 | ||||||||
Main Product
Company Profile
Beijing Appleton Technology Development Co., Ltd is a research and development, sales.promotion in one of the high-tech companies, Since its inception, has been committedto providing global customers with high-quality UPS uninterruptible power source, por-table power supply, maintenance-free batteries, lithium batteries and other relatedUPS products and professional solutions, ls an important enterprise in China's energy in-dustry, in the UPS uninterruptible power source has a long time of accumulation and ex-perience, the company is Eaton APC Chind's senior agent, has the industry's top designteam, able to provide a variety of personalized custom needs.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Our Factory
Our Certifcate
Exhibition
Packaging & Shipping
FAQ
1.Which UPS brands does Epton distribute?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and Vertiv Etc. We also offer customized UPS solutions based on specific customer requirements.
2. In which scenarios is the UPS uninterruptible power supply applicable?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and KELONG. We also offer customized UPS solutions based on specific customer requirements.
3. How long does it take for the products to be shipped?
Under normal circumstances, in-stock products will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately based on specific situations.
4.What payment methods do you accept?
We accept bank transfer (T/T), Alipay, and credit cards (via secure payment gateway)etc. Available options are subject to the order page.
5.Do you provide technical support?
Yes, we offer free technical consultation and remote support. You can reach us via phone, email, or online customer service.
