Product Description
Product Introduction
Technical Specifications | |||||

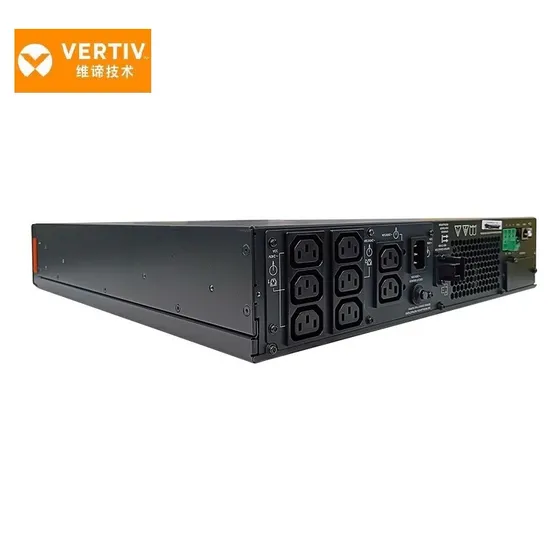

Model Number | GXT5-750IRT2UXL | GXT5-1000IRT2UXL | GXT5-1500IRT2UXL | GXT5-2000IRT2UXL | GXT5-3000IRT2UXL |
Ratings (VA/W ) | 750 VA / 750 W | 1000 VA / 1000 W | 1500 VA / 1500 W | 2000 VA / 2000 W | 3000 VA / 3000W |
Dimensions andWeight | |||||
Dimensions (mm) Unit, W×D×H | 400×430×85 | 470×430×85 | 540×430×85 | ||
Unit Weight(kg) | 16.5 | 21 | 28.5 | ||
Input | |||||
Rated Voltage | 230 VAC | ||||
Rated Frequency | 50 Hz / 60 Hz | ||||
Frequency Range | 40 to 70 Hz | ||||
Power Factor | ≥0.99 | ||||
Output | |||||
Nominal Voltage | 200/208/220/230/240 VAC | ||||
Waveform | Sine wave | ||||
Inverter Overload Capability | >200% minimum 250 ms; 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 seconds | >200% minimum 250 ms; 150 to 200% for 2 seconds; 105 to 150% for 55 seconds | |||
Efficiency in Online Mode | Up to 93% | Up to 94% | |||
Inverter Bypass | Up to 98% | ||||
Output Receptacles | (8) EN60320/C13 | (6) EN60320/C13 | |||
(1) EN60320/C19 | |||||
Internal Battery | |||||
Rated Voltage | 36 Vdc | 48 Vdc | 72 Vdc | ||
Charger Current | Nominal 2.2 A; Maximum 8 A | ||||
Type | Valve-regulated, non-spillable, lead acid | ||||
Qty × V × Rating | 3 × 12 V × 9.0 Ah | 4 × 12 V × 9.0 Ah | 6 × 12 V × 9.0 Ah | ||
End Cell Voltage | 1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, can be selected by PARAMSET) | ||||
Floating Voltage | Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell | ||||
Battery Voltage Range | 30 Vdc to 42.3 Vdc | 40 Vdc to 56.4 Vdc | 60 Vdc to 84.6 Vdc | ||
General | |||||
Operating Temperature | Full power up to 40 ºC (up to 50 ºC with derating) | ||||
Storage Temperature,°C | -15 to +40 | ||||
Relative Humidity | 0 to 95% non-condensing | ||||
Operating Elevation | Up to 3,000 m at 25°C without derating | ||||
Audible Noise | <46 dBA max @ 3 ft. (1 m) front and | <46 dBA max @ 3ft. | <48 dBA max @ 3ft. (1m) front and | ||
sides <43 dBA max @ 3 ft. (1 m) rear | (1 m) front and | sides <48 dBA max@ 3 ft. (1 m) rear | |||
sides <45 dBA max | |||||
@ 3 ft. (1 m) rear | |||||
Safety | UL-1788 (Fifth Edition) ,C-UL listed, IEC 62040-1: 2017 Edition 2.0, EN 62040-1:2008+A1:2013 | ||||
RFI/EMI | CISPR22 Class A (RFI) / FCC Part 15 (Class A) | ||||
Transportation | ISTA Procedure 1A | ||||
Main Product
Company Profile
Beijing Appleton Technology Development Co., Ltd is a research and development, sales.promotion in one of the high-tech companies, Since its inception, has been committedto providing global customers with high-quality UPS uninterruptible power source, por-table power supply, maintenance-free batteries, lithium batteries and other relatedUPS products and professional solutions, ls an important enterprise in China's energy in-dustry, in the UPS uninterruptible power source has a long time of accumulation and ex-perience, the company is Eaton APC Chind's senior agent, has the industry's top designteam, able to provide a variety of personalized custom needs.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Our Factory
Our Certifcate
Exhibition
Packaging & Shipping
FAQ
1.Which UPS brands does Epton distribute?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and Vertiv Etc. We also offer customized UPS solutions based on specific customer requirements.
2. In which scenarios is the UPS uninterruptible power supply applicable?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and KELONG. We also offer customized UPS solutions based on specific customer requirements.
3. How long does it take for the products to be shipped?
Under normal circumstances, in-stock products will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately based on specific situations.
4.What payment methods do you accept?
We accept bank transfer (T/T), Alipay, and credit cards (via secure payment gateway)etc. Available options are subject to the order page.
5.Do you provide technical support?
Yes, we offer free technical consultation and remote support. You can reach us via phone, email, or online customer service.
