Product Description
Product Introduction
Load and delay time | |||
1KVA | 2KVA | 3KVA | |
(0.8KW) | (1.6KW) | (2.4KW) | |
Standard | 12m(50%load)/4.8m(100%load) | 12m(50%load)/5.2m(100%load) | 11.5m(50%load)/4.5m(100%load) |
2V/24Ah×1 | 32m | 32m | 18m |
2V/38Ah×1 | 50m | 50m | 33m |
2V/65Ah×1 | 1h30m | 1h30m | 1h10m |
2V/75Ah×1 | 2h4m | 2h4m | 1h25m |
2V/100Ah×1 | 2h45m | 2h45m | 1h32m |

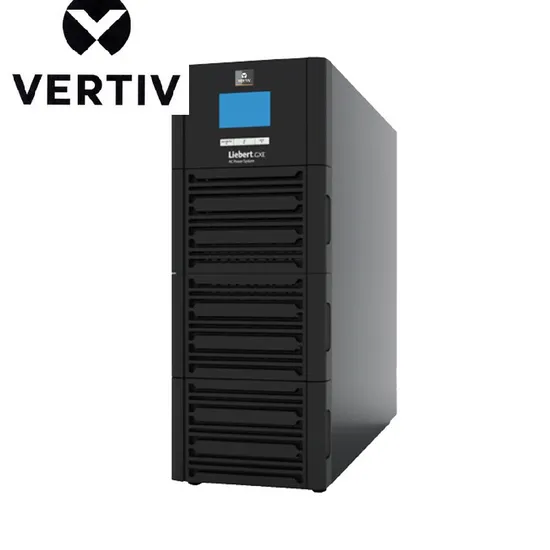

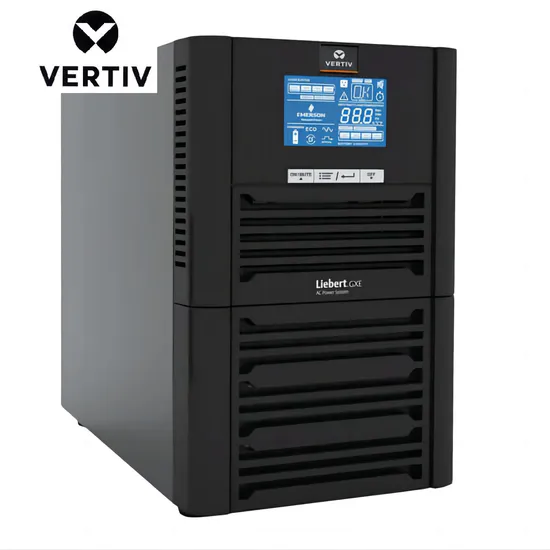

GXE 1-3KVA | |||||||||
Parameter | ProductModel | ||||||||
GXE01k00TS1101C00/ GXE 01k00TL1101C00 | GXE01k00TS1101C00 | GXE01k00TS1101C00 | |||||||
/ GXE 01k00TL1101C00 | / GXE 01k00TL1101C00 | ||||||||
Product Model Level | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | ||||||
Input | Voltage range (rated | 120Vac~288Vac,rated 220Vac,can work at full load within the full input voltage range | |||||||
Power factor | 0.99 | ||||||||
Frequency | 45Hz~65Hz;Adaptive | ||||||||
Outpu | Voltage | 220Vac±1%,230/240Vac±3% | |||||||
Power facto | 0.8 | ||||||||
Frequency | 45Hz~55Hz(50Hz);55Hz~65Hz(60Hz) | ||||||||
Wayeform | Sine wave | ||||||||
Current peak factor | 3:01 | ||||||||
Voltage distortion | ≤3% rated linear load, ≤5% rated nonlinear load | ||||||||
Overload capacity | Rated input:105%~130%,10min;130%~150%,1min;>150%,500ms | ||||||||
Battery | Type | Valve regulated sealed lead-acid battery | |||||||
Quantity*Voltage*Capacity | 3×12V×7Ah(Standard) | 6×12V×7Ah(Standard) | 6×12V×9Ah(Standard) | ||||||
Backup time | >4min | ||||||||
Recharging current | 8A max | ||||||||
Recharging time | Discharge 100%of the load until the UPS automatically shuts down | ||||||||
Environment | Operating temperature | 0ºC~+40ºC | |||||||
Storage temperature | -40ºC~+70ºC | ||||||||
Relatiye humidity | 0%RH~95%RH,No condensation | ||||||||
Working altitude | Upto 6,600 feet (2000m)at 40°C,no derating required | ||||||||
Noise | <45dB | ||||||||
Communications | Communication Interface | DB-9 RS-232,Type B USB | |||||||
and Managemen | SNMP Remote management | Optional external SNMP | |||||||
Installation method | Tower type | ||||||||
Switching time | 0ms | ||||||||
Overall machine efficiency (mains mode) | ≥91% | 293% | |||||||
Safety | EN62040-1:2008 | ||||||||
Electromagnetic | CE/RE | EC/EN/AS 62040-22nd Ed =CISPR22 Class A | |||||||
Compatibility | surge | EC/EN 61000-4-5,Level 3(2kV)(L,N versus ground),Level 2(1kV)(Between L and N) | |||||||
Size(W×H×D,mm) | Bare Metal | 156×255×295(Standard) | 156×255×466(Standard) | 156×255×466(Standard) | |||||
156×150×295(Long) | 156×150×466(Long) | 156×150×466(Long) | |||||||
Weight(kg) | Bare Metal | 12(Standard)/4(Long) | 22(Standard)/7(Long | 25(Standard)/7(Long) | |||||
After packaging | 13(Standard)/5(Long | 24(Standard)/8(Long | 27(Standard)/8(Long | ||||||
Color | Black RAL7021 | ||||||||
