Product Description
Product Introduction

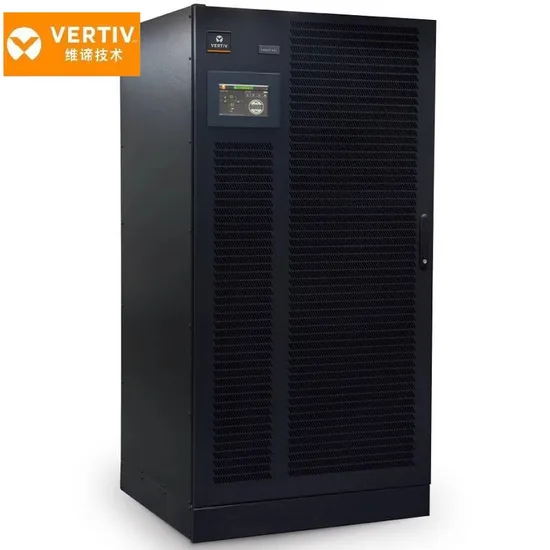

Liebert EXL Specifications | |||||||
TECHNICALSPECIFICATIONS | |||||||
UPSRatingkVA)30040050060080010001200 | |||||||
INPUT | |||||||
Nominal mains input voltage / voltage range* (V) | 400 (200 to 460), 3Ph or 3Ph + N | ||||||
Nominal bypass input voltage / voltage range* (V) | 50±10%(60selectable) | ||||||
Nominal frequency / frequency tolerance (Hz) | ≥0.99 | ||||||
Nominal bypass input voltage / voltage range* (V) | 400 (380/415 selectable), 3Ph or 3Ph + N | ||||||
Nominal frequency / frequency tolerance (Hz) | 50±10%(60 selectable) | ||||||
Input Power Factor | ≥ 0.99 | ||||||
Input current distortion (THDi) (%) | ≤3 | ||||||
OUTPUT | |||||||
Nominal output voltage (V) | 400 (380/415 selectable), 3Ph or 3Ph + N | ||||||
Nominal output frequency (Hz) | 50 (60 selectable) | ||||||
Output voltage stability by load variation 0-100% (%) | ±1 | ||||||
static | |||||||
dynamic | Complies with IEC/EN 62040-3, Class 1 | ||||||
Output frequency stability | ±2 (2, 3, 4, 5 selectable) | ||||||
synchronized with bypass mains | |||||||
synchronized with internal clock (%) | ±0.1 | ||||||
Inverter Overload Capacity* | 110% continuous, 125% for 10mins, 150% for 1min | ||||||
Output PF* | up to 1 | ||||||
Inverter Overload Capacity* | 110% continuous, 125% for 10mins, 150% for 1min | ||||||
Output PF* | up to 1 | ||||||
Load crest factor handled without derating the ups (Ipk/Irms) | 3:01 | ||||||
Compatibility with loads | Any power factor (leading or lagging) up to 1 | ||||||
BATTERY | |||||||
Permissible battery voltage range (V) | 396 to 700 | ||||||
Float voltage for VRLA @ 20 °C (V/cell) | 2,27 | ||||||
End cell voltage for VRLA (V/cell) | 1.65 | ||||||
Float Voltage stability in steady state condition (%) | ≤1 | ||||||
DC ripple voltage without battery (%) | ≤1 | ||||||
Battery Switch | Not included | ||||||
BAPASS | |||||||
Manual Maintenance Bypass | 50 (60 selectable) | Included 100-500 kW | Not included 600-1200 kW | ||||
CENERAL AND SYSTEM DATA | |||||||
Classification according to IEC/EN 62040-3 | VFI-SS-111 | ||||||
Operating Temperature (°C) | 0-40 | ||||||
Maximum relative humidity @ 20 °C (non condensing) (%) | up to 95 | ||||||
Protection degree with open doors | IP 20 | ||||||
Main Product
Company Profile
Beijing Appleton Technology Development Co., Ltd is a research and development, sales.promotion in one of the high-tech companies, Since its inception, has been committedto providing global customers with high-quality UPS uninterruptible power source, por-table power supply, maintenance-free batteries, lithium batteries and other relatedUPS products and professional solutions, ls an important enterprise in China's energy in-dustry, in the UPS uninterruptible power source has a long time of accumulation and ex-perience, the company is Eaton APC Chind's senior agent, has the industry's top designteam, able to provide a variety of personalized custom needs.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Our Factory
Our Certifcate
Exhibition
Packaging & Shipping
FAQ
1.Which UPS brands does Epton distribute?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and Vertiv Etc. We also offer customized UPS solutions based on specific customer requirements.
2. In which scenarios is the UPS uninterruptible power supply applicable?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and KELONG. We also offer customized UPS solutions based on specific customer requirements.
3. How long does it take for the products to be shipped?
Under normal circumstances, in-stock products will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately based on specific situations.
4.What payment methods do you accept?
We accept bank transfer (T/T), Alipay, and credit cards (via secure payment gateway)etc. Available options are subject to the order page.
5.Do you provide technical support?
Yes, we offer free technical consultation and remote support. You can reach us via phone, email, or online customer service.
