Product Description
Product Introduction

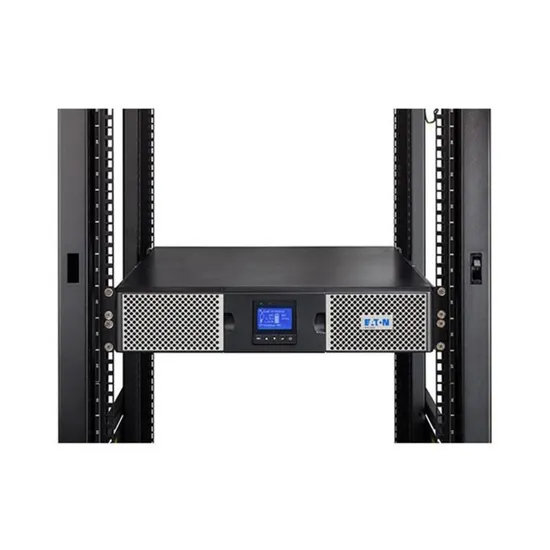

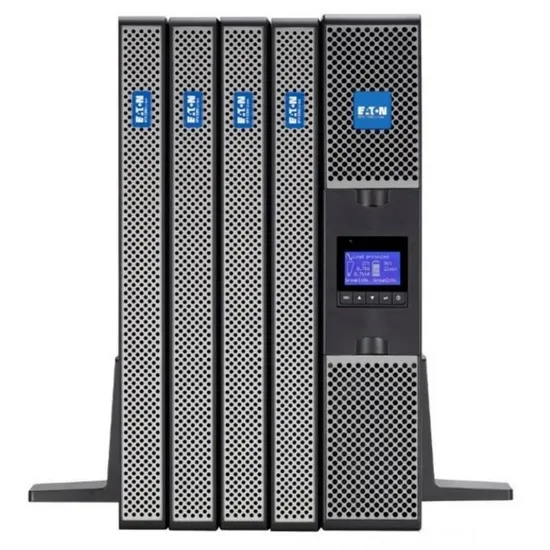

Eaton 9PX Lithium-ion UPS technical specifications | |||||||
Technical specifications | 1000 | 1500 | 2200 | 3000 | |||
Rating(VA/W) | 1000VA/1000W | 1500VA/1500W | 2200VA/2200W | 3000VA/2400W(3000VA/3000W | |||
with EBM) | |||||||
Format | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | |||
Electrical characteristics | |||||||
Technology | On-line double conversion with Power Factor Correction(PFC) system | ||||||
Nominal voltage | 200/208/220/230/240V | ||||||
Input voltage range | 176-276V without derating(up to 100-276V with derating) | ||||||
Input frequency range | 40-70Hz, 50/60Hz autoselection, frequency converter mode | ||||||
Efficiency | up to 91.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 92.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 93.5% in online mode(up to 98% in Hi-efficiency mode) | up to 94% in online mode(up to 98% in Hi-efficiency mode) | |||
Connections | |||||||
Input | 1 IEC C14(10A) | 1 IEC C20(16A) | |||||
Outputs | 8 IEC C13(10A) sockets | 8 IEC C13(10A) sockets+2 IEC C19(16A) sockets | |||||
Switched outlet group | 2 outlet groups | 2 outlet groups | |||||
Batteries | |||||||
Typical backup times* | 300W 500W 800W 1200W 1800W 2400W | ||||||
9PX1000 | 45 30 19 | ||||||
9PX1000+1 EBM/4EBM | 114/321 76/210 49/137 | ||||||
9PX1500 | 45 30 20 13 | ||||||
9PX 1500 +1EBM/4EBM | 114/321 76/210 52/145 33/92 | ||||||
9PX2200 | 66 45 30 21 14 | ||||||
9PX2200 +1EBM/4EBM | 170/475 112/305 78/205 52/148 35/98 | ||||||
3PX3000 | 68 46 30 21 14 10.5 | ||||||
3PX3000+1EBM/4EBM | 184/516 120/320 80/215 54/153 37/104 28/78 | ||||||
Battery | Lithium-ion battery (LFP) with 8 to 10 years service life, automatic recognition of external battery modules (EBM) | ||||||
Communication | |||||||
Communication ports | 1 USB port + 1 serial RS232 port+ 1 mini-terminal block for remote ON/OFF+ 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay | ||||||
Communication slot | 1 slot for Gigabit Network management card (included in netpack versions), Industrial Gateway Card (Modbus TCP/RTU), or Relay card. | ||||||
Operating conditions, standards and approvals | |||||||
Operating temprature | 0 to 40ºC | ||||||
Typical noise level | 35dB | 40dB | |||||
Safety | EC/EN62040-1,UL1778,CSA 22.2 | ||||||
EMC | IEC/EN62040-2,FCC Class B, CISPR22 Class B | ||||||
Approvals & markings | CE/CB report/EAC/Energy Star | ||||||
Dimensions H×W×D in mm/ weight | |||||||
1kVA | 1.5KVA | 2.2kVA | 3kVA | ||||
UPS | 86.5×440×450/15.6Kg | 86.5×440×450/15.8Kg | 86.5×440×605/22.1Kg | 86.5×440×605/22.8Kg | |||
EBM | 42.9×438×448/12.0Kg | 42.9×438×448/12.0Kg | 42.9×438×603/17.4Kg | 42.9×438×603/17.4Kg | |||
Customer service and support | |||||||
Warranty | 5 years full warranty (electronics, internal batteries and EBM) | ||||||
*Backup times are approximate and may vary with equipment configuration, battery age, temperature, etc. | |||||||
Parts numbers* | 1kVA | 1.5kVA | 2.2kVA | 3kVA | |||
UPS RT2U | 9PX1000IRT2U-L | 9PX1500IRT2U-L | 9PX2200IRT2U-L | 9PX3000IRT2U-L | |||
UPS RT2U with Gigabit Network card | 9PX1000IRTN-L | 9PX1500IRTN-L | 9PX2200IRTN-L | 9PX3000IRTN-L | |||
EBM RT1U | 9PXEBM48RT1U-L | 9PXEBM48RT1U-L | 9PXEBM72RT1U-L | 9PXEBM72RT1U-L | |||
*All 9PXLithium-ion UPSand EBM are delivered with rack kit. | |||||||
