Product Description
Product Introduction
Technical specifications | ||
UPSpowermodule | 9SX15KPM | 9SX20KPM |
Input | ||
Rated input voltage | 1 phase 220/230/240V,3 phase 380/400/415V | |
Input voltage range | 160V~300V full load;100~160V liner derating | |
Rated input frequency | 50Hz/60Hz | |
Input frequency range | 40 Hz-70 Hz | |
Input frequency phase lock range | 50Hz system:45 Hz-55 Hz;60Hz system:54 Hz-66 Hz | |
System compatibility | TN-S/IT | |
Input power factor (PF) | >0.995 both 1 phase and 3 phases | |
THDi | ≤3%linear load;≤5%non-linear load | |
Output | ||
Input-output phase connection | Input-output 3-1,3-3,1-1 | |
Rated output voltage | 1 phase 220/230/240V,3 phase 380/400/415V | |
Rated output frequency | 50Hz/60Hz | |
Rated output appearance power | 15KVA | 20KVA |
Rated output active power | 15KW | 20KW |
Max PF | 1 | |
Voltage variation | ±1% | |
THDV | ≤1%linear load;≤3%non-linear load | |
Load crest ratio | ≥3:1 | |
Output connection | Terminal block | |
Overload capacity line mode (at | 105%<Load≤125%:10min | |
rated voltage) | 125%<Load≤150%:1min | |
>150%:0.5s | ||
Batteryandcharger | ||
Internal Batteries | None.2x EBMs as minimum to provide backup time. | |
MMax quantity | 6 pairs (2*6) | |
Rattery yoltage | ±240V(adjustable to±192V,use with correct battery) | |
Charging current | 0~13A adjust | |
Recharging time | 3 hours to 90%(2 EBM) | |
Ffficlency | ||
Online mode | up to 96% | |
ECO or ESS mode | up to 98.8% | |
Otherworkingmode | ||
CVCF(constant voltage and constant frequency) | No derating at 3-3,3-1 mode;Detaring to 60%at 1-1 mode | |
Parallel mode | maximum3 | |
Interface | ||
Display | Coloured touch LCD with gravity sensor | |
Connectivity pot | RS232 DB9;USB 2.0 type-B;programmable dry contacts inyout;1 x Mini-Slot for comms cards | |
Physicaldimension | ||

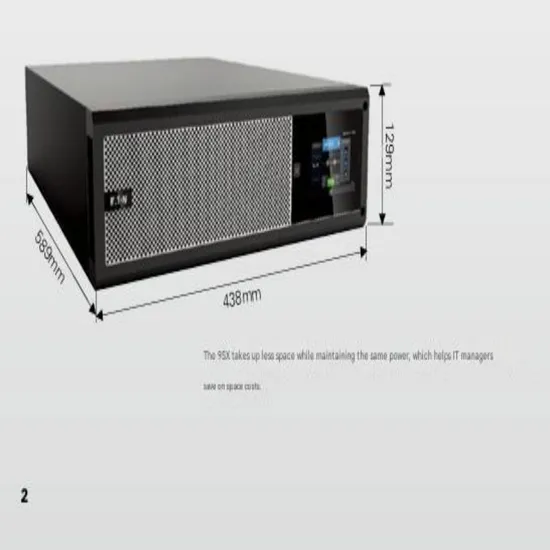

Dimersicn IH*W*D0 | 129mm*43Bmm*EBSmm | |
Net weight (Kg) | 23.7 | |
Environment | ||
Oparation tomparatura | o-C-50ºC40-40 no darating.40-C-50-C derating to 5o% | |
Slovago ternparatira | '-25°C~60°C | |
Reletive hurnidty | 0-85% | |
Oparating alttude | 0-4000m fn-1000m no dorating.1000m-4000m tho load derating 1 %awory up 100ml | |
Nbisa lewal | 55dB | |
Warranty | 2 yoars | |
Cortfication | ||
Safety | CE/TLC/RCM | |
Energy saving | COC | |
EEM | ||
Dimersion IH*W*D0 | 129mm*43B*SESmm | |
Net weight (Kg) | 124.2 | |
MEP (maintenancebypess) | ||
Dimension (H*W*D) | 129mm*438*589mm | |
Net weight (Kg) | 215 | |
Part number | ||
Modal | 9SX15K | 9SX20K |
roductdescnptiom | Partmumbar | |
UPS power module for ANZ | SSX15KPMAU | 9SX20KPMAU |
Eabarnal battary module 480V | 9SXEBM480RT6U (contains 2 x (240V, 3RU) modules each) | |
MBP sirnpla versia | MBP20K | |
MBP standard wersion | MBP20KPDU | |
MBP 1+1 parallel version | MBP20KPARA | |
New notwork cand | Network-M2 | |
Modbus cad | NDGWM2 | |
Erwronment dotecbion cand | EMPDT1H1C2 | |
Backup time table | |||
EBMquantity | Load | Backuptime(Min)-15kVA | Backuptime(Min)-20kVA |
1 group (2*240V EBM) | 100% | 3.8 | 2.4 |
75% | 5.7 | 3.8 | |
50% | 9.5 | 9.6 | |
25% | 23.5 | 24.9 | |
2 group (2*2*240V EBM | 100% | 13.8 | 8.5 |
75% | 20.7 | 13.8 | |
50% | 35.1 | 25.4 | |
25% | 91 | 65.6 | |
3 group (3*2*240V EBM) | 100% | 26.3 | 170 |
75% | 39.4 | 26.3 | |
50% | 68.1 | 42.9 | |
25% | 179.3 | 98.7 | |
4 group (4*2*240V EBM) | 100% | 39.8 | 25.1 |
75% | 59.6 | 39.8 | |
50% | 104.3 | 672 | |
25% | 2778 | 133 | |
