Product Description
Product Introduction

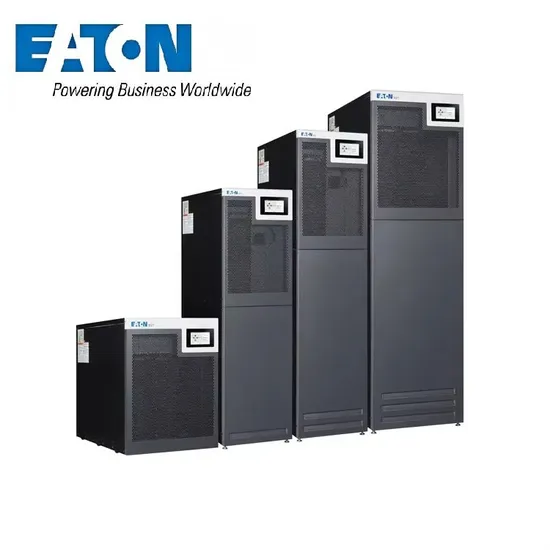

Eaton 93T 15-80kVA UPS technical specifications | |||||||||
Capacity | Rated capacity/active power (kVA/kW) | 15/15 | 20/20 | 30/30 | 40/40 | ||||
Input | Rated input voltage (Vac) | 380/400/415 | |||||||
Input voltage range (Vac) | 201-478 | ||||||||
Rated input frequency (Hz) | 50/60 | ||||||||
Input frequency range (Hz) | 40-72 | ||||||||
Bypass voltage range (Vac) | +/- 15% by default, +/- 20% optional | ||||||||
Input power factor | > 0.99 | ||||||||
Input current THDi (@ rated linear load) | < 3% | ||||||||
Output | Rated output voltage (M) | 380/400/415 | |||||||
Rated output frequency (Hz) | 50/60 | ||||||||
Power factor | 1 | ||||||||
Output voltage regulation (steady state) | ±1% | ||||||||
Output voltage tolerance regulation (dynamic) | ±5% (0-100% load variation) | ||||||||
Output voltage THDv (@ full linear load) | < 2% | ||||||||
Inverter overload capacity | 10 minutes, @125% | ||||||||
Productivity | Double-conversion mode | > 96% | |||||||
ESS mode | 99% | ||||||||
Parallel | Parallel unit | Up to 4 | |||||||
Battery configuration | Battery type | VRLA, NiCad,Lithium-ion | |||||||
Battery blocks quantity (with external VRLA batteries) | 32-50** | ||||||||
Battery blocks quantity (with internal VRLA batteries) | 36 | 32 | 36 | 32 | |||||
Charging method | BMS, ABM, or constant float charge | ||||||||
Connection | Support common battery | ||||||||
Dimensions | W*D*H (mm) standard model | 330*657*528 | |||||||
W*D*H (mm) integrated model (with battery compartment) | 380*740*1328 | 380*740*1575 | |||||||
W*D*H (mm) integrated model (without bat-tery compartment) | 380*740*650 | ||||||||
Weight | (Kg) standard model | 40 | 40 | 44.5 | 45 | ||||
(kg) integrated model (without battery com-partment) | 79 | 81 | |||||||
(kg) integrated model (with battery compart- ment but without batteries) | 147 | 149 | 152 | 159 | |||||
(kg) integrated model (with internal batteries) | 237 | 288 | 332 | 399 | |||||
Communication | Communication interface | 2 mini-slots, 3 building alarms inputs, and 1 RS232&1 USB | |||||||
Communication accessories | Gigabit network card; Industrial gateway card; EMP temperature and humidity sensor; AS/400 relay/RS-232 interface card | ||||||||
Others | Temperature | 0-50°C* | |||||||
Humidity | 5-95%, non-condensing | ||||||||
Altitude | < 1500 m, no derating | ||||||||
Noise (1m) | ≤ 65dB | ||||||||
Safety | IEC62040-1 | ||||||||
EMC compatibility | IEC62040-2 | ||||||||
Performance | IEC62040-3 | ||||||||
Certification | TLC, CQC energy saving, and Seismic test report | ||||||||
*Conditions apply | |||||||||
**Please contact Eaton technical personnel for application guidance | |||||||||
Main Product
Company Profile
Beijing Appleton Technology Development Co., Ltd is a research and development, sales.promotion in one of the high-tech companies, Since its inception, has been committedto providing global customers with high-quality UPS uninterruptible power source, por-table power supply, maintenance-free batteries, lithium batteries and other relatedUPS products and professional solutions, ls an important enterprise in China's energy in-dustry, in the UPS uninterruptible power source has a long time of accumulation and ex-perience, the company is Eaton APC Chind's senior agent, has the industry's top designteam, able to provide a variety of personalized custom needs.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Our Factory
Our Certifcate
Exhibition
Packaging & Shipping
FAQ
1.Which UPS brands does Epton distribute?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and Vertiv Etc. We also offer customized UPS solutions based on specific customer requirements.
2. In which scenarios is the UPS uninterruptible power supply applicable?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and KELONG. We also offer customized UPS solutions based on specific customer requirements.
3. How long does it take for the products to be shipped?
Under normal circumstances, in-stock products will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately based on specific situations.
4.What payment methods do you accept?
We accept bank transfer (T/T), Alipay, and credit cards (via secure payment gateway)etc. Available options are subject to the order page.
5.Do you provide technical support?
Yes, we offer free technical consultation and remote support. You can reach us via phone, email, or online customer service.
