Product Description
Product Introduction

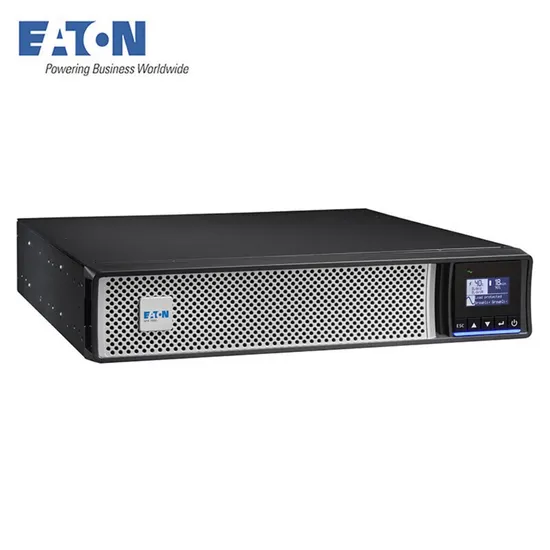

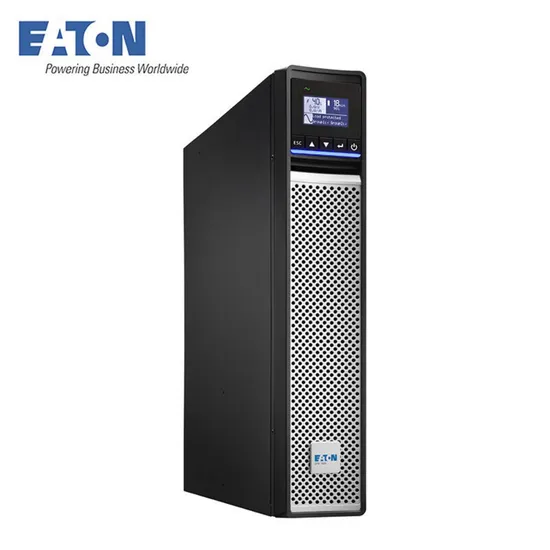

Eaton 5PX Gen2 Uninterruptible Power Supply | ||||||
Technical Specifications | 1000 | 1500 | 2200 | 3000 | ||
Rated power (VA/W) | 1000VA/1000W | 1500VA/1500W | 2200VA/2200W | 3000VA/3000W | ||
Model | RT2U (Rack/Chassis 2U) | RT2U (Rack/Chassis 2U) | RT2U & RT3U | RT2U & RT3U | ||
Electrical characteristics | ||||||
technology | Online interactive high frequency (pure sine wave) | |||||
AC input voltage range | 160V-294V (adjustable to 150V-294V) | |||||
AC input frequency range | 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low sensitivity mode. | |||||
Output voltage | 230V (+6/-10%) (adjustable to 200V*/208V/220V/230V/240V), 50/60Hz +/- 0.1Hz (automatic sensing) | |||||

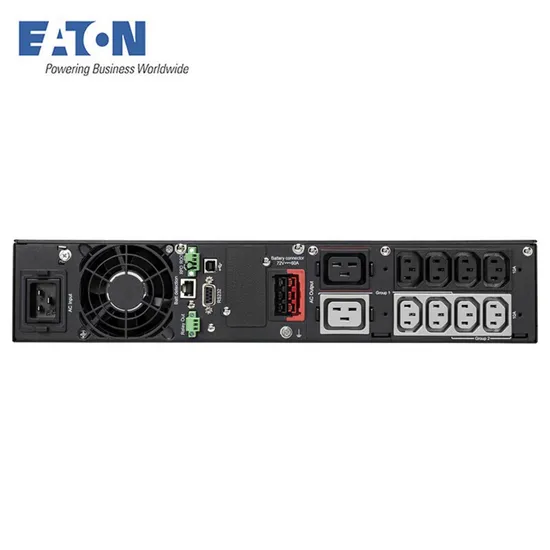

connect | ||||||
enter | 1 IEC C14 (10A) | 1 IEC C14 (10A) | 1 IEC C20 (16A) | 1 IEC C20 (16A) | ||
Output | 8 IEC C13 (10A) | 8 IEC C13 (10A) | 8 IEC C13 (10A) | 8 IEC C13 (10A) | ||
2 IEC C19 (16A) | 2 IEC C19 (16A) | |||||
Remote control socket | 2 sets of 2 IEC C13(10A) | One set of 2 IEC C13 (10A); One set of 2 IEC C13 (10A) + 1 IEC C19 (16A) | ||||
Additional hot-swappable maintenance bypass module output socket | 4 × FR/Schuko sockets or 3 × BS sockets or 6 × IEC 10A sockets or terminal blocks (hardware version) | |||||
Additional Flex PDU output socket | 8 FR/Schuko sockets or 6 BS sockets or 12 IEC 10A sockets | |||||
Battery | ||||||
Typical backup time (minutes)** | 300 watts | 500 watts | 800 watts | 1200 watts | 1800 watts | 2500 watts |
5PX 1000 | 30 | 17 | 8 | |||
5PX 1000+1EBM/+4EBM | 148/591 | 83/332 | 48/192 | |||
5PX 1500 | 44 | 24 | 13 | 7 | ||
5PX 1500+1EBM/+4EBM | 164/611 | 92/346 | 53/199 | 33/123 | ||
5PX 2200 | Fifty | 28 | sixteen | 9 | 4 | |
5PX 2200+1EBM/+4EBM | 242/958 | 138/551 | 80/319 | 49/197 | 30/121 | |
5PX 3000 | 68 | 39 | 23 | 13 | 7 | 4 |
5PX 3000+1EBM/+4EBM | 255/950 | 146/546 | 86/323 | 54/201 | 33/124 | 22/84 |
Battery Management | ABM® and temperature-compensated charging methods (user optional), automatic battery testing, deep discharge protection, and automatic identification of external battery compartments. | |||||
interface | ||||||
Communication port | A small terminal with 1 USB interface, 1 RS232 serial interface, 1 remote control switch, 1 remote power-off small terminal, and 1 output relay small terminal. | |||||
Communication slot | One slot for a Network M2, INDGW-M2, or Relay-MS card. | |||||
Working conditions, standards and certifications | ||||||
Operating temperature | 0 to 40ºC | |||||
noise | Less than 40 dBA under typical load | |||||
Safety | IEC/EN 62040-1, UL1778, CSA22.2 | |||||
EMC performance | IEC/EN 62040-2, FCC Class B, CISPR22 class B | |||||
Certification | CE/CB Report/EAC/UKCA/Ukraine/CM | |||||
Dimensions (width × depth × height) / Weight | ||||||
UPS dimensions (mm) | 438×448×85.5 | 438×448×85.5 | 438×603×85.5 (RT2U) | 438×603×85.5 (RT2U) | ||
438×483×129(RT3U) | 438×483×129(RT3U) | |||||
UPS weight (kg) | 19.6 | 22.4 | 28.2 (RT2U) / 27.5 (RT3U) | 31.7 (RT2U) / 31.1 (RT3U) | ||
EBM dimensions (mm) | 438×448×85.5 | 438×448×85.5 | 438×603×85.5 (RT2U) | 438×603×85.5 (RT2U) | ||
438×483×129(RT3U) | 438×483×129(RT3U) | |||||
EBM weight (kg) | 27.8 | 27.8 | 40.4 (RT2U) / 39.7 (RT3U) | 40.4 (RT2U) / 39.7 (RT3U) | ||
Service and Support | ||||||
Warranty | 1 year | |||||
* 5% derating at 200V; | ||||||
** Backup time is an estimate and may vary depending on device, configuration, battery aging, temperature and other factors. | ||||||
Product Model* | 1000 | 1500 | 2200 | 3000 |
UPS RT2U | 5PX1000IRT2UG2 | 5PX1500IRT2UG2 | 5PX2200IRT2UG2 | 5PX3000IRT2UG2 |
UPS RT2U with network card | 5PX1000IRTNG2 | 5PX1500IRTNG2 | 5PX2200IRTNG2 | 5PX3000IRTNG2 |
UPS RT3U | 5PX2200IRT3UG2 | 5PX3000IRT3UG2 | ||
Evidence medicine | 5PXEBM48RT2UG2 | 5PXEBM72RT2UG2 (RT2U) | ||
5PXEBM72RT3UG2 (RT3U) | ||||
2-meter battery connection cable | EBMCBL48RT | EBMCBL72 | ||
All 5PX UPS and EBM come with rack kits; | ||||
The standard configuration of the Netpack version includes a network management card. | ||||
