Product Description
Product Series - Rack-Mounted | |||||
SKU Technical Specifications | |||||

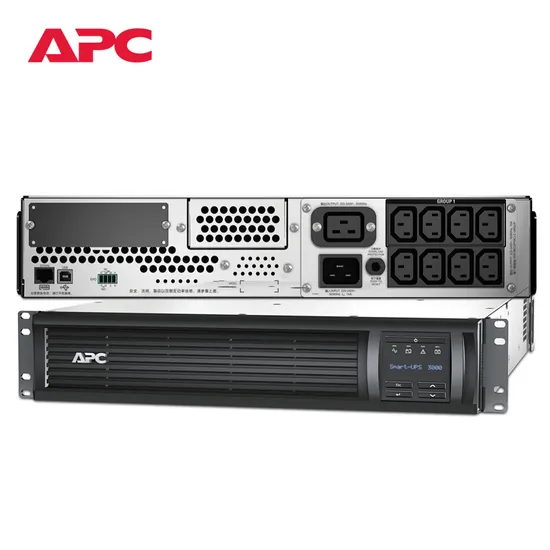

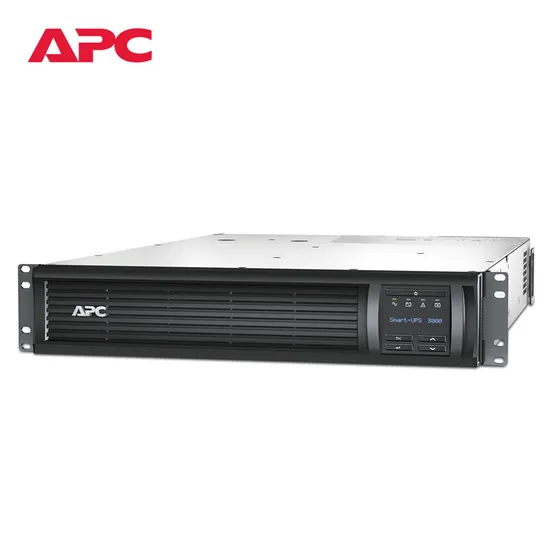

SMT1000RMI2U-CH | SMT1500RMI2U-CH | SMT2200RMI2U-CH | SMT3000RMI2U-CH | ||
Topology | Online interactive | ||||
Output | |||||
Output power capacity | 700W / 1000VA | 1000W / 1500VA | 1980W / 2200VA | 2700W / 3000VA | |
Rated output voltage | 230V | ||||
Output voltage distortion | <5% Full load (linear) | ||||
Output frequency (synchronized with mains power) | 50 Hz +/- 1 Hz | ||||
Output waveform | sine wave | ||||

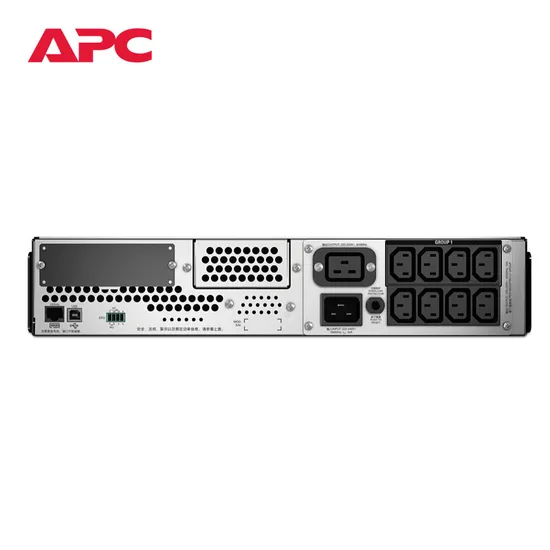

Output interface | (4) IEC 320 C13 | (8) IEC 320 C13, (1) IEC 320 C19 | |||
Controllable output socket group | There is 1 | There is 1 | |||
Full load efficiency | 96% | ||||
enter | |||||
Rated input voltage | 230V | ||||
Input frequency range | 47Hz~53Hz & 57Hz~63Hz | ||||
Input Interface | IEC 320 C14 | IEC 320 C20 | |||
Input voltage range | 160V - 286V | 160V - 287V | |||
Battery and runtime | |||||
Battery Type | Sealed, maintenance-free valve-regulated lead-acid batteries | ||||
Typical runtime (half load/full load) | 33 minutes / 8.7 minutes | 26.5 minutes / 7.2 minutes | 17 minutes / 5 minutes | 10 minutes / 3 minutes | |
Communications and Management | |||||
Communication interface | RJ-45 10-pin, RS232 or Advanced simple signaling, USB | ||||
SmartSlot™ Smart Card Slot | have | ||||
control Panel | LCD display/LED status indicator | ||||
Sound alarm | have | ||||
Surge protection | |||||
Rated surge energy | 459 Joules | 459 Joules | 365 Joules | 365 Joules | |
physical parameters | |||||
Net dimensions (height × width × depth) | 86.11x431.80x474.98mm | 86.11x431.80x683.01mm | |||
rack height | 2U | ||||
net weight | 28.12kg | 28.58kg | 42.22kg | 44.19kg | |
Shipping dimensions (height × width × depth) | 251x594x603mm | 254x600x980mm | |||
Transport weight | 31.45kg | 31.91kg | 49.73kg | 51.70kg | |
color | black | ||||
environment | |||||
Work environment | 0-40℃ | ||||
Operating relative humidity | 0-95%, non-condensing | ||||
Working altitude | 0-3000 meters | ||||
Storage temperature | -15 to 45°C (short-term storage) | ||||
Storage relative humidity | 0-95%, non-condensing | ||||
Store altitude | 0-15000 meters | ||||
Noise (at 1 meter) | 45dB | 55dB | 55dB | ||
Consistency | |||||
Management organization certification | CE, IEC 62040-1-1 & IEC 62040-2, VDE | CE, IEC/EN 62040-1-1, IEC/EN 60950-1, IEC/EN62040-2, VDE | |||
Product Introduction
Main Product
Company Profile
Beijing Appleton Technology Development Co., Ltd is a research and development, sales.promotion in one of the high-tech companies, Since its inception, has been committedto providing global customers with high-quality UPS uninterruptible power source, por-table power supply, maintenance-free batteries, lithium batteries and other relatedUPS products and professional solutions, ls an important enterprise in China's energy in-dustry, in the UPS uninterruptible power source has a long time of accumulation and ex-perience, the company is Eaton APC Chind's senior agent, has the industry's top designteam, able to provide a variety of personalized custom needs.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Since 2013, we have obtained the management certifcation of lOS 9001, 1S014001IS045001, and the products have obtained the CEROHS FCC lEC certifcation. With pro-fessional support, effcient sales team and competitive pricing advantages, we haveattracted customers from all over the world. Our partner customers are in more than 50countries including the USA, Canada, UK, France, Germany, Australia, Colombia, Chileand Trukiye. Excellent products and excellent service are the basis of our cooperation.believe we can have very pleasant exchanges and deeper cooperation. l frmly believethat the products we supply can bring you huge profts and a bigger market.
Our Factory
Our Certifcate
Exhibition
Packaging & Shipping
FAQ
1.Which UPS brands does Epton distribute?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and Vertiv Etc. We also offer customized UPS solutions based on specific customer requirements.
2. In which scenarios is the UPS uninterruptible power supply applicable?
We represent international brands such as APC by Schneider Electric, Eaton, Santak, and KELONG. We also offer customized UPS solutions based on specific customer requirements.
3. How long does it take for the products to be shipped?
Under normal circumstances, in-stock products will be shipped within 1–3 working days after order confirmation and payment. Delivery timelines for customized or out-of-stock items will be communicated separately based on specific situations.
4.What payment methods do you accept?
We accept bank transfer (T/T), Alipay, and credit cards (via secure payment gateway)etc. Available options are subject to the order page.
5.Do you provide technical support?
Yes, we offer free technical consultation and remote support. You can reach us via phone, email, or online customer service.
